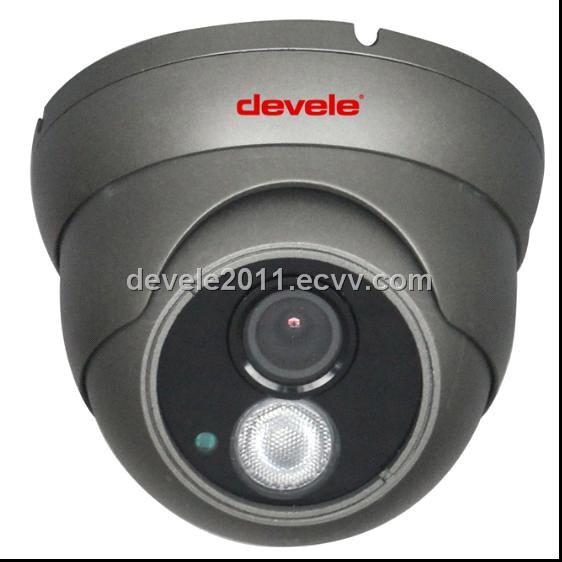

50m Dot Array Color IR Dome Camera DV-IR720 Use the latest generation of LED light (IRⅢ be LED-Array),photoelectric conversion efficiency, low power consumption and long life. Superior night vision and night vision without noise points;
Effective IR distance can reach 50 meters; Mount a large F1.2 high-definition IR Lens.
Excellent and clarity image detail .Color reproduction is true and bright .
Good image brightness,depth and realism image.
Strong light intensity ability ,stable effect .
Strong processing ability of light intensity,the effect is stable
| Model | D2 | DL | HL | HR | HE | ||||
| Pick up device | 1/4〞Sony Super HAD CCD II | 1/3〞Sony Super HAD CCD II | 1/3〞Sony Super HAD CCD II | 1/3〞Sony SUPER HAD CCD II | 1/3〞Sony EXview HAD CCD II | ||||
| Number of pixels | PAL:500(H)×582(V) NTSC:510(H)×492(V) | PAL:500(H)×582(V) NTSC:510(H)×492(V) | PAL:752(H)×582(V) NTSC:768(H)×484(V) | PAL:752(H)×582(V) NTSC:768(H)×484(V) | PAL:976(H)×582(V) NTSC:976(H)×484(V) | ||||
| System of signal | PAL / NTSC | ||||||||
| Horizontal Resolution | 420TV Line | 420Tvline | 540 Tvline | 600TV line | 650 Tvline | ||||
| Minimum illumination | 0LUX/F1.2(IR ON) | 0LUX/F1.2(IR ON) | 0LUX/F1.2(IR ON) | 0.0003LUX | 0.01LUX | ||||
| Lens | Mount16mm, 6mm/8mm/12mm/25mm is optional | ||||||||
| Backlight Compensation | Auto | ||||||||
| Electronic Shutter | 1/50(1/60)~1/100, 000sec | ||||||||
| White Balance | Auto | ||||||||
| S/N Ratio | ＞48db | ||||||||
| Gamma Correction | ＞0.45 | ||||||||
| Operation Temperature | -20℃~50℃ | ||||||||
| Sync System | Internal | ||||||||
| Video Output | 1.0Vp-p/75?(BNC) | ||||||||
| Power Supply | DC12V | ||||||||
| LED | 1PCS IRⅢ LED | ||||||||
| IR View distance | Indoor 50m | ||||||||
| Waterproof Rate | IP66 | ||||||||
| Dimensions(mm) | 120(L)X120(W)X130(h) | ||||||||
| Weight (g) | 564g | ||||||||
